No canon source states a lightsaber’s temperature. The 20,000-degree figure that circulates is uncited and changes unit depending on who repeats it, physics estimates land near 7,680 K for a blade that cuts steel, and a real LED saber blade measures about 100 °C at full white.
Those are three different questions wearing the same words: what the story implies, what physics requires, and what the object in your hand actually does.
Keeping them apart is the only way the numbers make sense.
What’s on This Page
- What Canon Actually Says
- What It Takes to Cut Steel
- The Numbers, Ranked
- Why the Hilt Doesn’t Melt
- What a Real Blade Actually Heats To
- Heat by Technology
- How Long You Can Run It
- What It Feels Like to Touch
- Frequently Asked Questions
What Canon Actually Says
Canon never states a temperature. Every on-screen use shows what the blade does, not how hot it is.
No film, show, or reference book prints a number, and no readout appears on a hilt.
What canon gives instead is behavior, and the behavior is consistent. A blade cuts through blast doors and armored plating. It seals a wound as it opens it, which is why lightsaber injuries barely bleed. It can melt a metal wall given enough seconds of contact.
Every one of those clues points past the temperature of a cutting torch, and none of them quantify it.
Where the 20,000 figure comes from
It behaves like folklore rather than a specification. The number appears in fan reference compilations and entertainment articles, but the trail back to a primary source is thin, and the unit drifts.
Some outlets print 20,000 °F, about 11,000 °C. Others print 20,000 °C, about 36,000 °F.
Both get described as “twice the surface of the sun,” and neither is exactly right. The sun’s surface sits near 5,500 °C, so 20,000 °F is roughly twice that while 20,000 °C is closer to four times.
That inconsistency is the tell. A real specification does not migrate between unit systems.
What It Takes to Cut Steel
Cutting steel sets a floor around 4,000 K, and the most careful published estimate puts a saber blade near 7,680 K.
Below roughly 4,000 K a plasma melts and pushes rather than cutting cleanly. That threshold comes from industrial cutting practice, not from Star Wars.
The most cited academic treatment is a University of Leicester paper in the Journal of Physics Special Topics, which worked the problem from the energy side. Their result: sustaining a blade at saber temperature would demand around 63.6 MW, and the blade would land near 7,680 K.
The paper also flags its own problem. A blackbody at that temperature radiates mostly in the ultraviolet, so the blade would not look green to a human eye.
The films’ colors and the physics do not agree, which is a useful reminder that canon is telling a story rather than modeling a plasma.
Where the very high estimates come from
They come from assuming the blade must do something instant and total. One widely shared calculation takes Rey’s cut through a stone pillar in The Last Jedi and derives a blade temperature near 20,300 °C, roughly 3.7× the sun’s surface.
That is a legitimate way to bound the problem. It is not a measurement, and it rests on assumptions about contact time, stone composition, and how much energy went into the pillar rather than the air.
The real-world check comes from the other direction. The Hacksmith’s Guinness-recognized plasma saber runs a laminar propane-oxygen flame at about 2,200 °C and cuts steel plate.
So cutting steel does not require 20,000 degrees. It requires a few thousand, delivered in one place.
The Numbers, Ranked
The quoted figures span four orders of magnitude, and only two of them were ever measured on real hardware.
Here is every figure that gets repeated, what it rests on, and how much weight it deserves. The ranking is by method, not by how dramatic the number sounds.
| Source | Claim | Basis | Weight |
|---|---|---|---|
| Circulating fan figure | ~20,000 °F or °C | Unspecified; unit varies by outlet | Low — no method given |
| Fan calculation from The Last Jedi | ~37,000 °F (20,300 °C) | Energy to cut a stone pillar on screen | Low to medium — assumption-heavy |
| Leicester physics paper | 7,680 K (~7,400 °C) | Energy balance for a steel-cutting blade | Medium — stated assumptions, peer-reviewed student work |
| Plasma-cutting threshold | ≥4,000 K | Industrial cutting practice | Medium to high — empirical floor |
| Guinness-record plasma saber | ~2,200 °C | Measured; cuts steel | High — it exists and it was measured |
| Real Neopixel blade, full white | ~100 °C (212 °F) | Community thermal test, ten minutes | High — measured on hobby hardware |
| Sun’s surface (reference) | ~5,500 °C | Astronomy | Reference point only |
Two things stand out once the claims share an axis. The spread is enormous, and the only measured numbers sit at the bottom.
Why the Hilt Doesn’t Melt
In canon a containment field holds the plasma away from the hilt. In real hardware the same job is done with distance, insulation and gas flow.
Canon’s answer is clean: the blade is plasma held inside a field, and the hilt projects that field rather than holding the heat. The field also explains why the blade stops at a fixed length and why two blades lock instead of passing through each other.
Physics has a less elegant answer, and it is the same one used in real plasma torches. A cutting torch holds a flame hot enough to melt steel, and the operator’s hand sits several inches behind a nozzle with a ceramic barrier and a flowing gas stream between them.
That is the whole trick. Heat does not travel instantly up a handle; it travels through material, and the material can be chosen and spaced to slow it down.
The hilt still warms up
In a real saber, hilt heat comes from the battery and the driver board, not from the blade. High-drain cells under load produce heat, and the regulator produces more.
On a metal hilt with no vents, that heat has nowhere to go. If your hilt is warm after a session, it is almost always the electronics rather than the blade.
What a Real Blade Actually Heats To

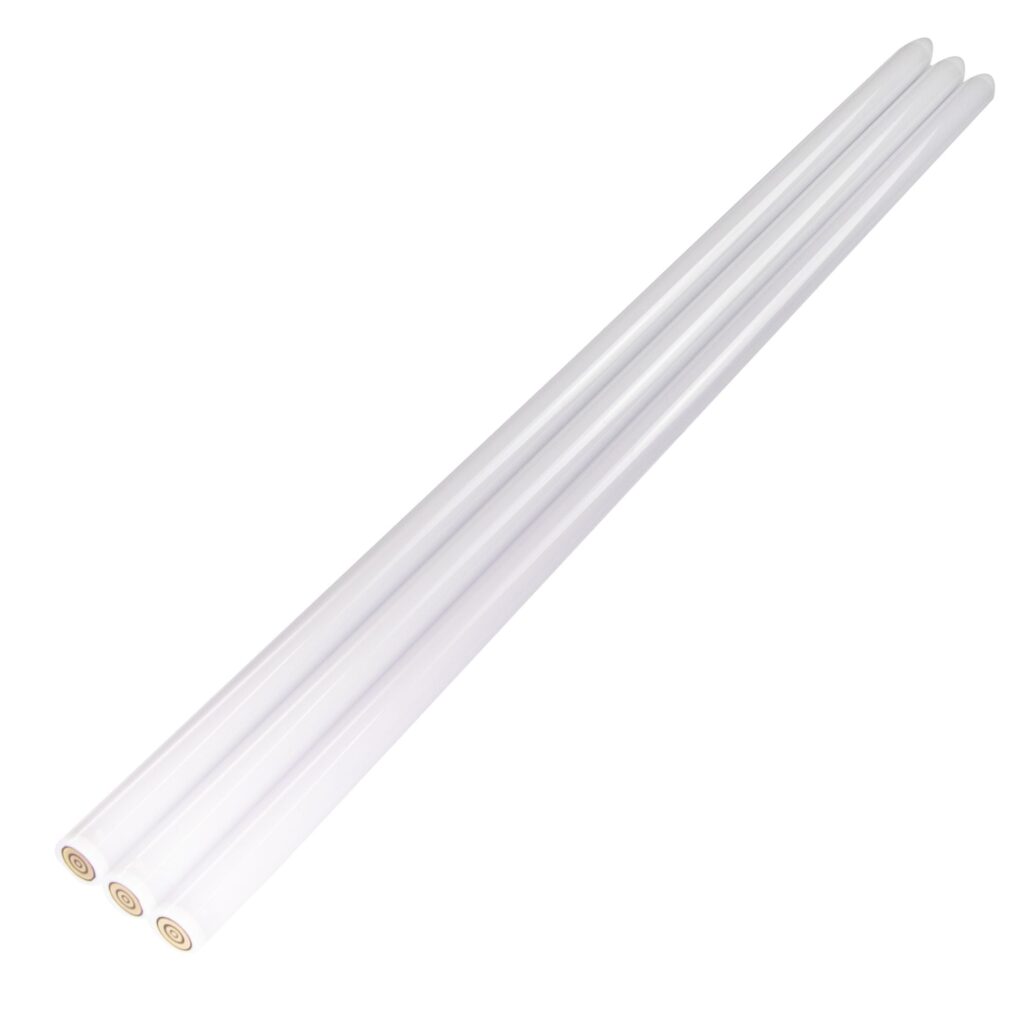

A real Neopixel blade reaches about 100 °C (212 °F) at full white after ten minutes, close enough to the softening point of its own tube to matter.
This is the part that affects you, and it has been measured. A community thermal test on a lightly insulated blade running 55 pixels per strip, two strips, at full RGB white reached about 100 °C after ten minutes.
That is hot enough to burn on contact. It is also hot enough to degrade the diffuser film from the inside, which is where the permanent yellowing on old blades comes from.
A second data point comes from a sealed RGBW strip at 144 LEDs per meter, built into a polycarbonate blade with foam and no airflow. It hit roughly 120 °F at the front LEDs in two minutes on full blue, against a strip rating of 185 °F maximum operating temperature.
A third, from a double-strip build run at full power, saw LEDs fail after about 20 minutes near 80 °C. The builder’s conclusion was to run at roughly 40% of maximum to stay out of thermal trouble.
Why the heat builds instead of escaping
A saber blade is a sealed tube packed with foam and film. There is no fan, no vent, and almost no convection inside it.
Heat leaves almost entirely by conduction through the polycarbonate wall, and polycarbonate is a poor conductor.
On top of that, the LED chips are not efficient at turning current into light. WS2812-family pixels burn excess voltage as heat, which is why running a strip at 5 V instead of 3.7 V does not make it brighter. It makes it hotter.
Now put two numbers side by side. The measured blade surface reaches around 100 °C. Polycarbonate’s heat deflection temperature is roughly 135 °C.
The margin is thin, and a hot day, a long full-white run and a tightly wrapped blade can close it.
Heat by Technology
Where the light is made decides what gets hot: a baselit saber warms at the emitter and leaves the blade cool, while a Neopixel warms the whole blade.
| Technology | Light source | Where heat forms | What gets warm |
|---|---|---|---|
| Baselit | One high-power LED in the emitter | At the LED module in the hilt | The hilt near the emitter; the blade stays cool because it only carries light |
| Neopixel | Addressable strip inside the blade | Along the full length of the strip | The whole blade, plus the hilt from the driver and battery |
| Xenopixel | Addressable strip inside the blade | Same as Neopixel | The whole blade; the board adds hilt heat |
| Proffie | Addressable strip inside the blade | Same as Neopixel | The whole blade; the board is not the heat source in the blade |
The practical consequence is that a baselit blade can be handled at the tip after a long session, while a Neopixel blade cannot. The full baselit versus Neopixel comparison covers the wiring and power differences behind that split.
The light source is what heats. In one design it lives in your hand, in the other it lives in the thing you are swinging.
How Long You Can Run It
Ten minutes at full white is the informal ceiling, and brightness is the same dial as heat.
There is no hard limit printed anywhere, but the failure modes converge on a similar practice.
- Full white is the worst case. White drives all three dies at maximum at once. A saturated color uses one or two, so it runs cooler at the same perceived brightness.
- Ten minutes is the common informal ceiling for high-density blades at high brightness. Builders running 500 or more LEDs suggest letting the blade rest after roughly that long.
- Brightness and heat are one control. Running at about 40% of maximum keeps the strip far from its thermal limit and looks close to full output indoors.
- Ambient temperature stacks. A sealed tube in summer sunlight starts the run already warm.
- Cool before you disassemble. Pulling a hot blade out of an emitter, or retracting a warm telescopic blade, is how tubes develop permanent warps.
None of this makes a saber fragile. It makes the thermal budget real, and treating full-white as a setting rather than a default is the difference between a blade that lasts years and one that yellows in months.
What It Feels Like to Touch
At normal brightness the blade is warm; after a full-white run it is hot enough to burn, and you should let it cool first.
The surface you touch is the outside of the polycarbonate wall, which is the coolest part of the assembly. The strip at the center is hotter than the tube it sits in, and the foam between them holds that heat in place.
For kids’ sabers, the safer default is lower brightness and shorter sessions. A baselit blade removes the question entirely, because the blade has no heat source inside it.
The general rule is simple: if the blade feels uncomfortably warm through the tube, stop and let it cool. Nothing about that advice depends on which estimate of a fictional temperature is correct.
Where the heat actually travels
Four layers, one exit path
- 1 — LED strip. The heat source, running most of the blade length.
- 2 — Diffusion film and foam. Hold the light, and hold the heat with it.
- 3 — Polycarbonate wall. Conducts heat out slowly, and softens near 135 °C.
- 4 — Outer surface. The coolest layer, and the one your hand touches.
Arrows mark the only exit path: strip to foam to wall to air. Every layer in that chain is a thermal resistor, which is why a sealed blade keeps climbing for the full run instead of levelling off quickly.
Frequently Asked Questions
Q1: How hot is a lightsaber in Fahrenheit?
A: There is no official figure. The number most often quoted is about 20,000 degrees, but sources disagree on whether that is Fahrenheit or Celsius. Physics estimates land around 13,300 °F, and a real LED blade measures around 212 °F at full white.
Q2: Is 20,000 degrees canon?
A: No. No film, series, or canon reference book states a blade temperature. The figure circulates in fan reference material without a clear primary source, and the unit changes depending on who is repeating it.
Q3: Could a real lightsaber exist?
A: Not as depicted. Plasma at several thousand degrees needs containment, and the containment field is the fictional part. Real plasma cutters reach cutting temperatures, but they burn gas continuously and need a handle far from the arc.
Q4: Why doesn’t the blade burn the hilt?
A: In canon, a containment field holds the plasma away from the hilt. Real plasma tools use distance, ceramic insulation and gas flow instead. In an LED saber the blade never gets hot enough to threaten the hilt at all.
Q5: How hot does a Neopixel blade get?
A: Around 100 °C in a stress test at full white for ten minutes on a lightly insulated blade. Colored use at moderate brightness stays far below that.
Q6: Can a lightsaber blade melt?
A: The tube does not melt at normal blade temperatures, but it softens near 135 °C and can warp well before that. The diffuser film inside degrades at lower temperatures.
Q7: Do baselit sabers get hot?
A: The blade does not, because the light source sits in the hilt. The hilt near the emitter does get warm. A baselit blade can be handled immediately after use.
Q8: Is it safe to touch a lit blade?
A: At normal brightness, yes. It is warm rather than hot. After a long run at full white, no. Let it cool.
Q9: Why does my blade feel hotter near the tip?
A: Heat accumulates where it cannot escape. The tip is capped, insulated by the tip bond, and has the least wall area for conduction, so it runs warmer on high-density strips.
